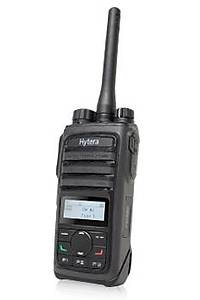

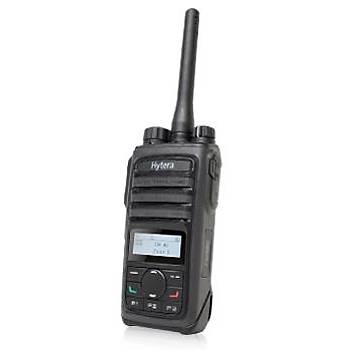

HYTERA PD565 DİJİTAL EL TELSİZİ
| General | ||
| Frequency Range | UHF: 400-470MHz , VHF: 136-174MHz | |
| Channel Capacity | 512 | |
| Channel Spacing | 25/20/12.5KHz | |
| Zone Capacity | 32 | |
| Operating Voltage | 7.4V (rated) | |
| Battery (5-5-90 Duty Cycle, High TX Power) | 1500mAh (Li-Ion)/2000mAh | |
| Battery Life (5/5/90 ) | Analog: about 11 Hours Digital: about 16 Hours |
|
| Frequency Stability | ±0.5ppm | |
| Antenna Impedance | 50Ω | |
| Dimensions | 115 x 54 x 30mm | |
| Weight | 280g | |
| Transmitter | ||
| RF Power Output | VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W |
|
| FM Modulation | 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz | |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW | |
| Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz | |
| Modulation Limiting | ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz | |
| FM Noise | 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz | |
| Adjacent Channel Power | 60dB @ 12.5KHz 70dB @ 20/25KHz | |
| Audio Response | +1 ~ -3dB | |
| Audio Distortion | ≤3% | |
| Digital Vocoder Type | AMBE++ or SELP | |
| Digital Protocol | ETSI-TS102 361-1，2&3 | |
| Receiver | ||
| Sensitivity | Analog | 0.22μV (12dB SINAD) 0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD) |
| Digital | 0.22μV /BER5% | |
|
Adjacent Selectivity
TIA-603
ETSI
|
60dB @ 12.5KHz / 70dB @ 20&25KHz
60dB @ 12.5KHz / 70dB @ 20&25KHz
|
|
|
Spurious Response Rejection
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
|
|
|
Inter-modulation
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
|
|
| Hum & Noise | 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz | |
| Rated Audio Power Output | 0.5W | |
| Rated Audio Distortion | ≤3% | |
| Audio Response | +1 ~ -3dB | |
| Conducted Spurious Emission | < -57dBm | |
| Environmental Specifications | ||
| Operating Temperature | -30℃ ~ +60℃ | |
| Storage Temperature | -40℃ ~ +85℃ | |
| ESD | IEC 61000-4-2 (level 4) ±8kV (contact) ±15kV (air) | |
| Dust & Water Intrusion | IP54 Standard | |
| Humidity | Per MIL-STD-810 C/D/E/F/G Standard | |
| Shock & Vibration | Per MIL-STD-810 C/D/E/F/G Standard | |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | PD565 |
| Marka | HYT & Hytera |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
